Groups and overlaps

Routes: /workloads/groups, /workloads/groups/{id}, and /workloads/overlaps

Purpose

Groups organize workloads into non-destructive application families. Overlap analysis identifies resources represented by more than one workload, either explicitly or through a broader scope. Use both when production, staging, development, and shared-platform boundaries need to remain visible without losing their individual workload identities.

When to use groups

  • Model an application family across production and non-production environments.
  • Roll up resource count, health, criticality, environment mix, and risk.
  • Compare members to find environment drift, such as a production-only service or missing control.
  • Attach ownership and descriptive metadata at the family level.

When to use overlap analysis

  • After Autopilot or manual scope changes.
  • Before ownership, cost, or coverage reporting where double attribution matters.
  • When a shared platform legitimately belongs to several applications.
  • When a resource appears explicitly in one workload but is implied by another workload’s resource-group or subscription scope.

Prerequisites and data sources

Prerequisites and permissions

  • workloads.read for groups, comparisons, and overlap scans.
  • workloads.write to create/edit/delete groups, assign members, or change workload membership.
  • A valid Azure connection for deep overlap expansion.

Tabs and actions

Freshness and scope behavior

Workflow overview

Group workflow

  1. Open /workloads/groups.
  2. Create a group with a clear name, description, owner, color, and tags, or review suggested families based on workload naming.
  3. Add workloads. Assignment stores a group reference on each workload and does not merge resources.

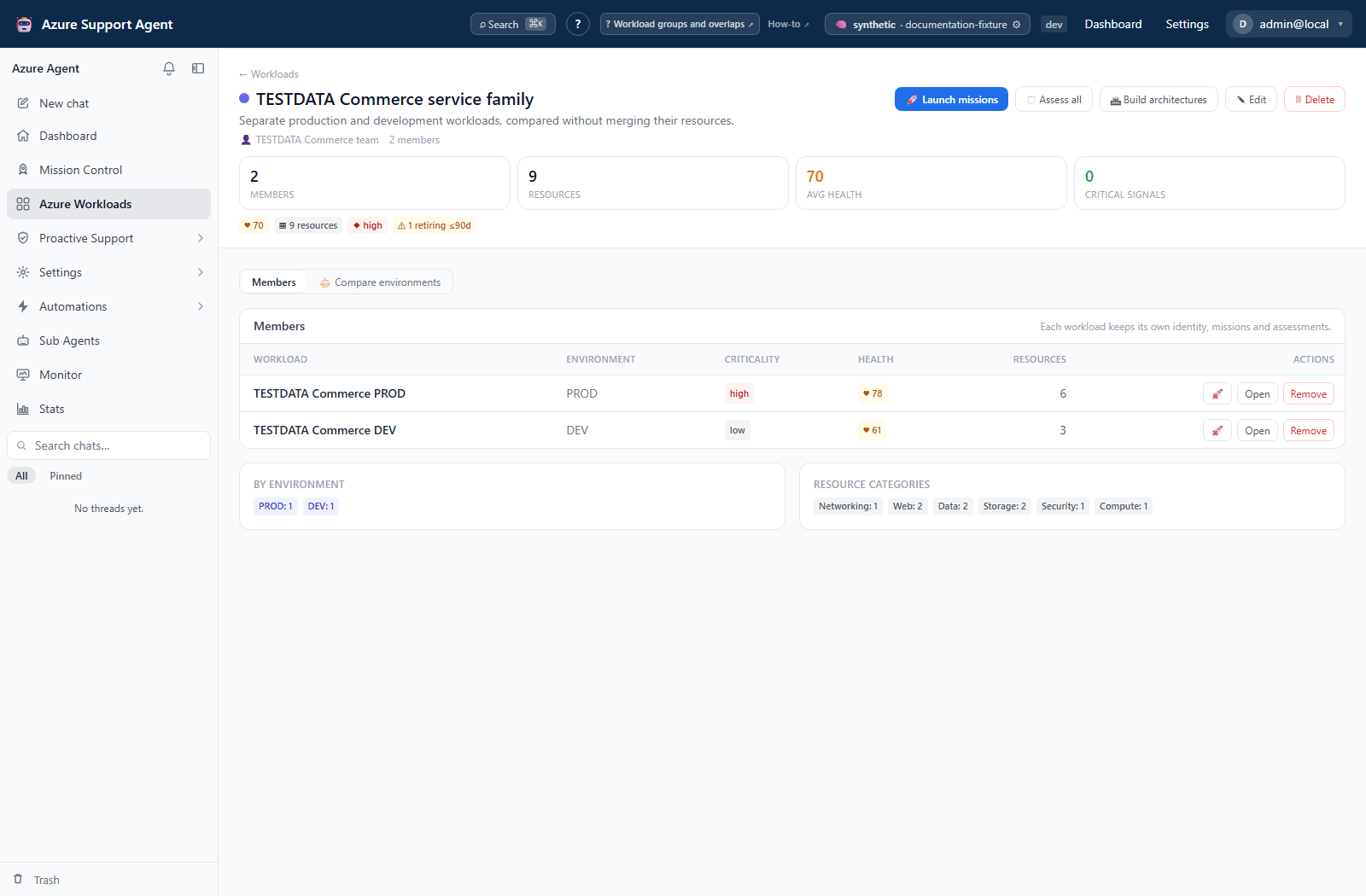

  4. Open group detail to review the rollup and member profiles.

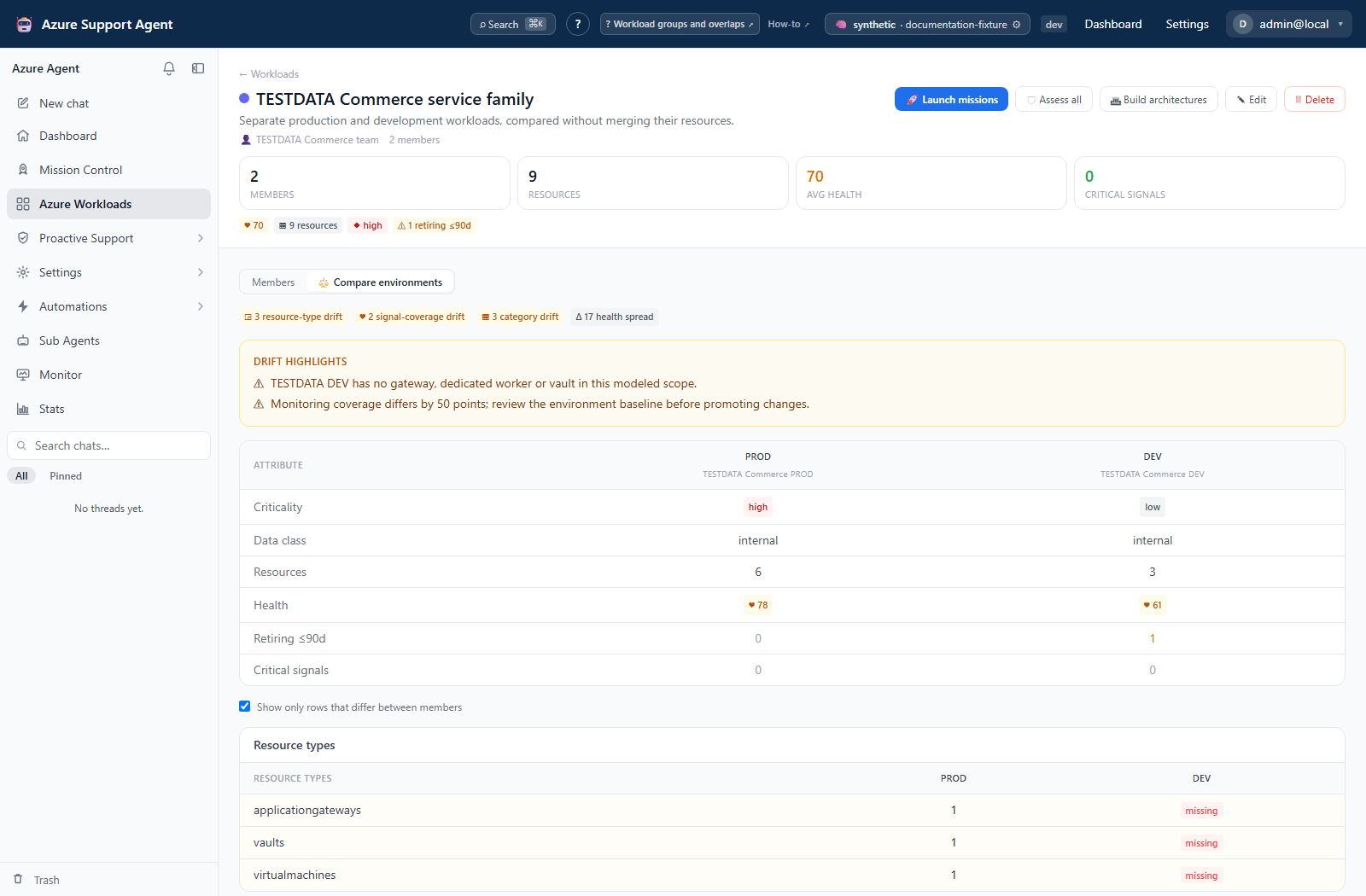

  5. Use Compare to inspect resource-type, category, and health-signal coverage across members.
  6. Enable drift-only display to focus on divergent signals.
  7. Investigate highlighted differences before deciding whether they are defects or intentional environment design.

A health spread greater than 30 points is highlighted as significant, but it still requires component-level review because members may have different available signals.

Overlap workflow

  1. Open /workloads/overlaps.
  2. Start with the instant explicit scan.
  3. Run Deep scan when scope-implied membership must be expanded through Azure; this requires a usable connection and can take longer.
  4. Group results by resource, workload pair, or resource type.
  5. Export CSV if a review requires offline ownership decisions.
  6. Decide whether each overlap is intentional.
  7. For unintended overlap, edit the workload node/exclusion or use the available remove-from-others action after confirming the authoritative owner.
  8. Rerun the scan to verify the result.

Interpretation of results

Interpret results

  • Explicit overlap: the same resource is directly selected in multiple workloads.
  • Scope-implied overlap: a resource is covered by a broad scope in one workload and another matching scope or explicit node elsewhere.
  • Group rollup: aggregates active members’ cached profiles; it is not a new live scan.
  • Compare highlight: a notable difference, not automatically a defect.
  • Suggested group: name-token clustering, not an AI-confirmed application relationship.

Exports, history, scheduling, and integrations

No dedicated export, history, scheduling, or integration controls are documented for this feature page.

Safety and limitations

Safety

  • Shared resources can be intentional. Do not deduplicate automatically without service-owner review.
  • Removing a resource from a workload changes every downstream analysis that uses that scope.
  • Deleting a group detaches its members but does not delete workloads.
  • Grouping does not confer Azure ownership or access control.
  • Exported overlap data can contain resource identifiers; handle it as infrastructure metadata.

Troubleshooting

Symptom Resolution
Expected overlap is absent Run Deep scan; instant mode detects explicit overlap only
Deep scan fails Verify connection access and Resource Graph availability
Group rollup is unknown Analyze member workloads so profiles contain usable signals
Member is missing Check whether it is trashed; active membership is derived from workload group_id
Compare looks inconsistent Review member signal freshness and missing components
Suggested groups are incorrect Ignore them and create explicit groups; suggestions rely on environment/name tokens
