Entra: setup and coverage

Product permission: entra.read to view; entra.admin to re-check permissions or start a collection.

Purpose

App route: /entra/setup

Setup & coverage is the page that decides whether every other Entra tab can tell you the truth. It reports the consent tier the tenant has actually granted, what each tier unlocks, which collector domains are measured or blind, and why. Read it first and read it again whenever a tab claims it cannot see something.

Prerequisites and data sources

A connection holding service-principal credentials (tenant ID, client ID, and a client secret or certificate) for the tenant you want to analyze.
A directory role that can grant admin consent in the Microsoft Entra admin center — this app cannot grant consent for you.
Entra ID P1 or P2 where the data itself is license-gated.

Data comes from two sources: the token’s own scope claims, and a live probe that issues one cheap read per domain against Microsoft Graph.

Every scope this feature requests is an Application permission and every one is read-only. The product never requests a ReadWrite scope for posture collection and never writes to the directory.

Tier 1 — Minimum viable

Unlocks the posture score, applications, directory roles, and the Conditional Access inventory.

Scope	Why
`Directory.Read.All`	Users, groups, roles, and directory objects
`Application.Read.All`	App registrations and service principals
`Policy.Read.All`	Conditional Access policies, named locations, authentication strengths
`RoleManagement.Read.Directory`	Directory role definitions and assignments
`Organization.Read.All`	Tenant profile, license state, verified domains

Tier 2 — Recommended

Adds dormancy, MFA registration truth, consent posture, change history, and sign-in analysis.

Scope	Why
`AuditLog.Read.All`	Sign-in and directory audit logs
`Reports.Read.All`	Registration and usage reports
`UserAuthenticationMethod.Read.All`	Which methods each user actually registered
`Group.Read.All`	Group objects used in policy and role scoping
`GroupMember.Read.All`	Transitive membership for effective-user resolution
`Policy.Read.PermissionGrant`	Consent and permission-grant policies
`Device.Read.All`	Device compliance and join state used by Conditional Access
`Synchronization.Read.All`	Provisioning jobs on enterprise applications
`SecurityEvents.Read.All`	Security alerts correlated with identity findings

Tier 3 — Complete

Adds PIM depth, Identity Protection risk, access reviews, entitlement management, and lifecycle workflows.

Scope	Why
`RoleManagementPolicy.Read.Directory`	Per-role PIM configuration (MFA, justification, approval, duration)
`RoleAssignmentSchedule.Read.Directory`	Activation history with requestor, justification, and ticket
`PrivilegedAccess.Read.AzureAD`	PIM eligibility and assignment schedules
`PrivilegedAccess.Read.AzureADGroup`	PIM for groups
`IdentityRiskyUser.Read.All`	Identity Protection risky users
`IdentityRiskEvent.Read.All`	Risk detections behind those users
`IdentityRiskyServicePrincipal.Read.All`	Risky workload identities
`AccessReview.Read.All`	Access review campaigns and decisions
`EntitlementManagement.Read.All`	Access packages and assignment expiry
`LifecycleWorkflows.Read.All`	Joiner, mover, and leaver workflows
`OnPremDirectorySynchronization.Read.All`	Hybrid sync configuration and health
`IdentityProvider.Read.All`	External identity providers guests sign in with
`DirectoryRecommendations.Read.All`	Microsoft’s own directory recommendations

RoleAssignmentSchedule.Read.Directory deserves a specific note: without it the setup page can report every PIM scope granted while the coverage banner still calls activation history a blind spot, because activation history is a separate collection from PIM configuration.

Identity fabric

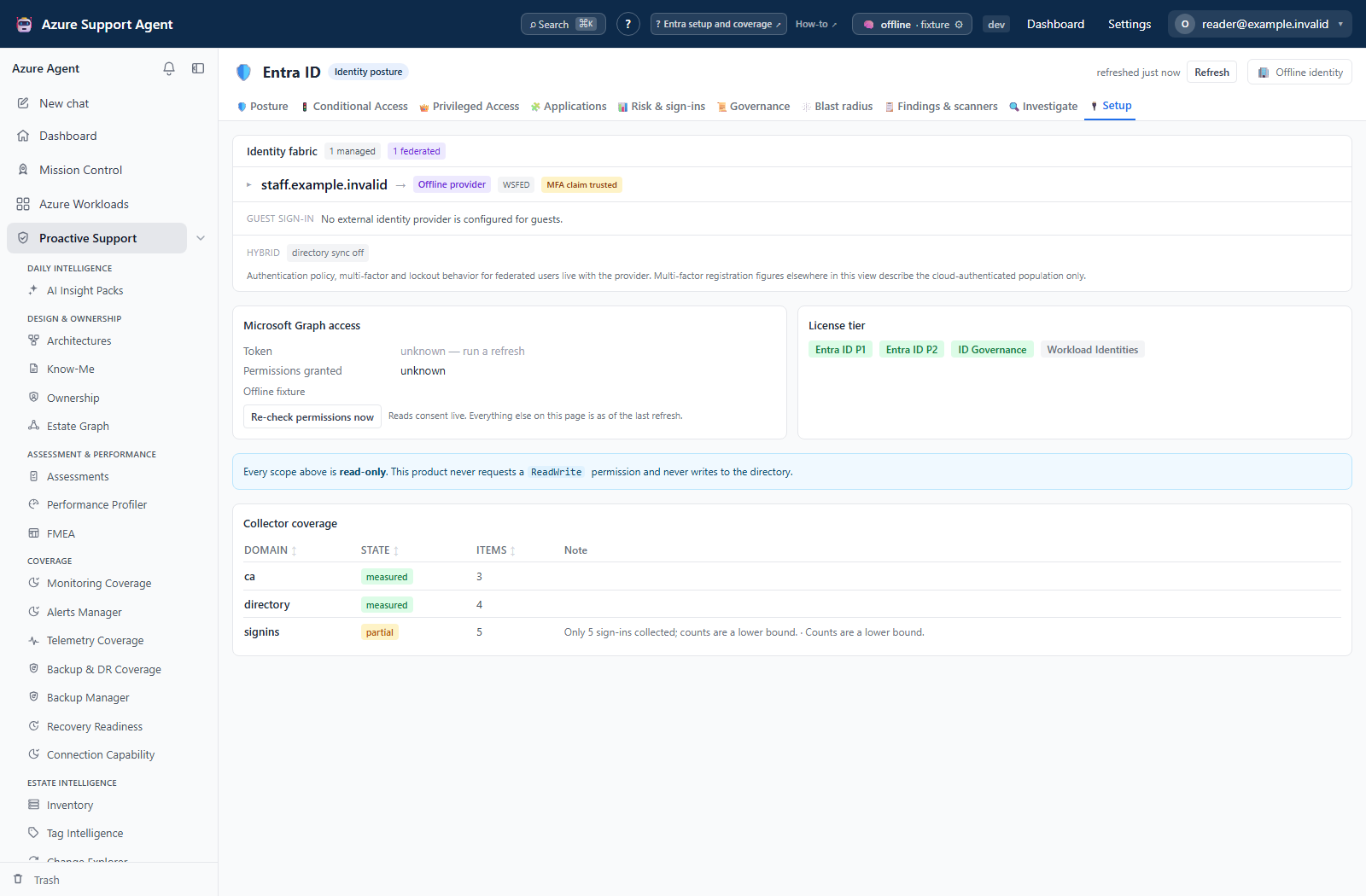

The card above the coverage table answers a question no other screen does: does this tenant authenticate its own users?

A domain is either managed — Entra signs those users in — or federated, meaning an external identity provider does it and Entra accepts the result. The card names every federated domain, fingerprints the provider from its issuer URI and endpoints (PingFederate, PingOne, Okta, AD FS, OneLogin, Auth0, Shibboleth and others; an unrecognized provider is reported as unrecognized, with its host, rather than guessed), and states how many users sit behind it.

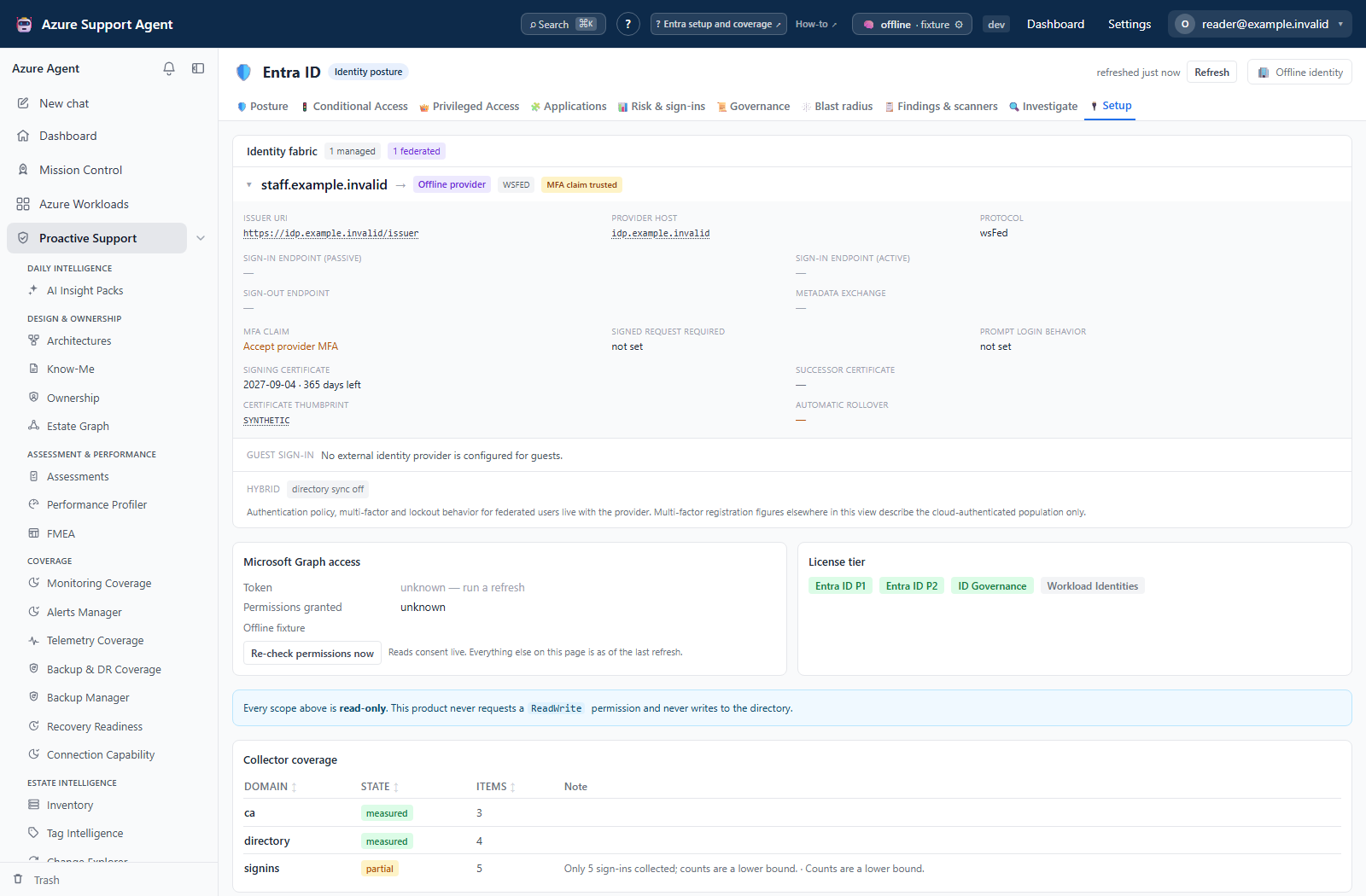

Expanding a federated domain shows the trust in full:

Group	Fields
Identity	Issuer URI, provider host, protocol (WS-Fed or SAML)
Endpoints	Passive and active sign-in, sign-out, metadata exchange
Security	MFA claim behavior, signed-request requirement, prompt-login behavior
Certificate	Signing and successor certificate expiry, thumbprint, automatic rollover result

The MFA claim row is the one that matters most. When federatedIdpMfaBehavior is unset, Entra applies the permissive default and accepts multi-factor authentication performed by the provider — so a Conditional Access policy requiring MFA can be satisfied by a system Entra does not control. The card says so explicitly, and the same condition is raised as a high-severity finding.

The certificate rows read the signing and successor certificates together, because Entra accepts either. A trust whose primary certificate has expired but whose successor is valid is not an outage; it is reported as running on its successor, with the note that the overlap protecting the next renewal has been spent. Only the derived facts are ever shown — subject, issuer, thumbprint and expiry. The certificate itself is parsed during collection and discarded, the same rule application credentials follow.

Below the trusts, the guest sign-in row lists the external identity providers configured for external users — social providers such as Google or Apple, and SAML or WS-Fed federation with a partner domain. This is a second and entirely separate perimeter: a tenant can authenticate every one of its own staff in the cloud and still accept a partner’s identity provider for guests. It needs IdentityProvider.Read.All, which nothing else in the product uses, so it is commonly the last part of the perimeter to become legible. When the scope is missing the row says so — “not readable” is shown rather than the silence that would read as “no guest provider is configured”. Only the registration is shown: the display name, the provider type, the issuer and the client identifier. The client secret is never requested.

Below that, the hybrid row reports directory synchronisation, its last run, password hash synchronisation, writeback settings and accidental-deletion prevention. On a federated tenant, password hash synchronisation being off means there is no fallback when the provider is unreachable and leaked-credential detection cannot run at all.

A tenant with no federated domains gets a single sentence saying every domain authenticates in Entra ID — that is the good outcome, not an empty table. If the domain list itself cannot be read, the card says so rather than implying a clean perimeter. A snapshot collected before this check existed is labeled as such and asks for a refresh, which is a different statement again from a permission problem.

The same facts are carried, in one line, to the two screens whose own numbers depend on them: the Posture header and the auth methods sub-view of Risk & sign-ins. The federation scope of Blast radius draws the consequence.

Tabs and actions

Setup & coverage is a single page with four blocks.

App registration shows the tenant and client the connection is using, with a link to the consent page. Grant each scope as an Application permission — delegated consent will not work for background collection.
Consent tiers lists all three tiers with per-scope granted or missing state and a completeness marker per tier.
Re-check permissions now asks Microsoft rather than trusting the cached snapshot. It reports what is granted, what was gained since the last check, what was revoked, which domains remain blind, and whether a fresh collection is needed to make the new scopes count.
Domain coverage is a table of collector domains — tenant, people, apps, roles, Conditional Access, PIM, activations, risk, governance, devices, hybrid — with a state, an item count, and the reason for anything short of measured.

Freshness and scope behavior

Granting consent does not change any screen on its own. The sequence is always: grant in Entra → Re-check permissions now → start a collection from the freshness badge → read the tabs.

Consent propagation is not instant. If a re-check still reports a scope as missing a minute after you granted it, wait and re-check again before assuming the grant failed.

Interpretation of results

Domain state is deliberately narrow, because “we got no data” has several very different causes.

State	Meaning	What to do
`measured`	The domain was collected successfully	Nothing
`partial`	Some of the domain collected; the rest failed or was truncated	Read the reason; usually throttling or a capped enumeration
`blind`	No alternative scope in the requirement group is granted	Grant the missing tier and re-collect
`unlicensed`	The scope is consented, but the tenant lacks the Entra ID P1/P2 license for the data	Nothing to fix with consent
`error`	The collector failed for another reason	Read the message on the diagnostics view
`stale`	Data came from an earlier snapshot	Refresh

Only an HTTP 403 is evidence about consent. Microsoft answers a missing Entra ID P2 or Governance license with a 400 or a 403 carrying a license marker in the message, so the probe classifies responses as permitted, denied, unlicensed, or inconclusive rather than mapping every failure to “grant more permissions”. An inconclusive probe means the answer is unknown — do not grant scopes in response to it.

Several domains accept alternative scopes. Directory.Read.All is a superset of a number of narrower reads, so a domain is only blind when none of its alternatives are held.

Safety and limitations

The probe issues one small read per domain. It is safe to run and does not modify anything.
This page cannot grant consent, and the product deliberately has no path to do so.
The setup page reflects the connection’s own service principal. Switching connections switches tenants and every state on the page.
Never paste real tenant IDs, client IDs, object IDs, or secrets into tickets, prompts, or documentation taken from this page.

Troubleshooting

Symptom	Check
A tier shows granted but a domain is still blind	Re-check permissions, then run a collection — the snapshot predates the grant.
Every domain is blind	The connection cannot obtain a Graph token at all; verify tenant, client, and secret or certificate.
PIM configuration is measured but activation history is not	Grant `RoleAssignmentSchedule.Read.Directory`.
Risk and governance report unlicensed	The tenant lacks Entra ID P2 or Governance; consent will not help.
Probe result is inconclusive	Usually throttling or a transient Graph error; re-check later.
Consent granted minutes ago is still missing	Wait for propagation and re-check before re-granting.
